Linked server #Back to Basics

Really back to basic, but here is another example how to move data from one server to the other in a scheduled job.

First make sure, when you use an sql account to connect both servers, the account exist on both ends of the line.

Now we create a linked server, after all my former tutorials, I don’t have to go into detail, either script it or use SSMS gui, un this case I’m using it for a MSSQL to MSSQL this is easy peasy.

LS_make

Create a database and table if it doesn’t exsist on the server you want to insert the data in.

If all is setup, write a simple INSERT INTO script:

INSERT INTO [FunFactory_II].[dbo].[Accounts_NAWT]
(AccountNumber]
,[Name]
,[Street]
,[PostalCode])
SELECT
[AccountNumber]
,[Name]
,[Street]
,[PostalCode]
FROM [FunFactory_I].[dbo].[BSN].[Accounts]

And the last step is to create a job, to start the import automatically and schedule it to run on a given time.

This is my really #back to basic linked server tutorial, but you can add and tweak functions into the script and built fully automated solutions for your data.

For example a scheduled sql job to insert data from the linked server.
insertIntoFF

Linked server to Microsoft Azure #Error 405150

When Azure was launched, we missed one important feature, the linked server, It seemed impossible to do cross database queries from your local database to the Azure database, but Microsoft listened and made it possible to do database queries that spans multiple databases across platforms.

There is plenty of hits when googled on the errors, but none of these are complete! I will write down the  process of linking your server to Azure.

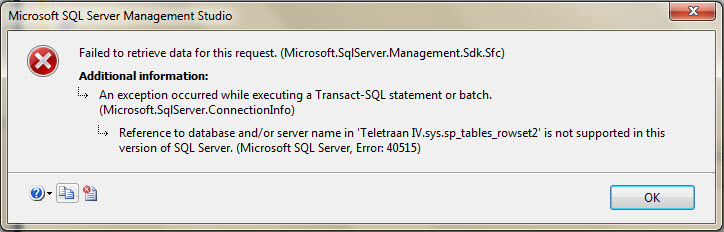

when I first created a linked server to Azure, I got this error  “reference to database and/or server name is not supported in this version error: 405150”, When trying to add a linked server from SSMS, you are not given option to set a default database. So I used Tsql instead, because without a specific catalog, your linked server will not work.LS_Azure

Azure doesn’t allow you to alter the master db, so you have to connect directly on the database you are going to use.

What people never tell LS newbies and make you google this error “Msg 2812, Level 16, State 62, Line 1 Could not find stored procedure ‘sp_addlinkedserver’ ” and read tons of blogs and tutorials all providing different queries, but still no work, follow these steps”.

The Tutorial, the Solution:

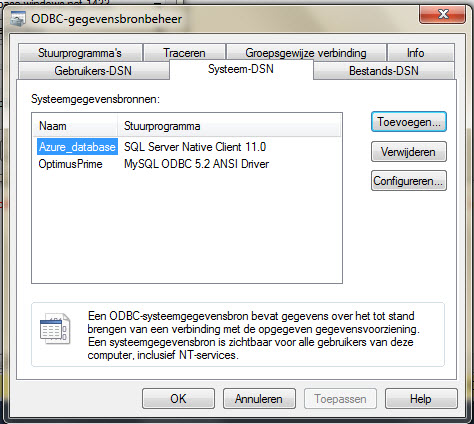

Open up ODBC, or simply run odbcad32.exe. and start by making a new system DNS with the Native client.

ls_SYSDNS

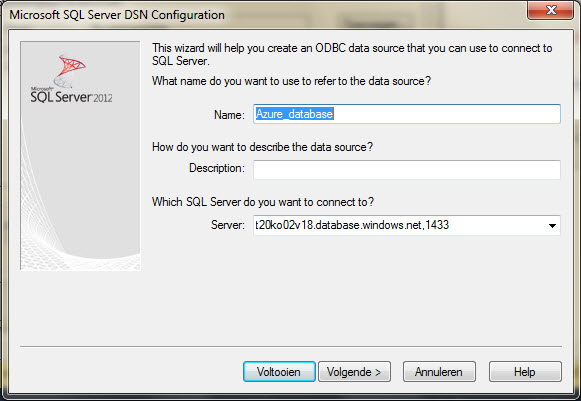

In the next step, you provide your datasource name and the complete server name as you can find on the Azure server.

LS_makedns

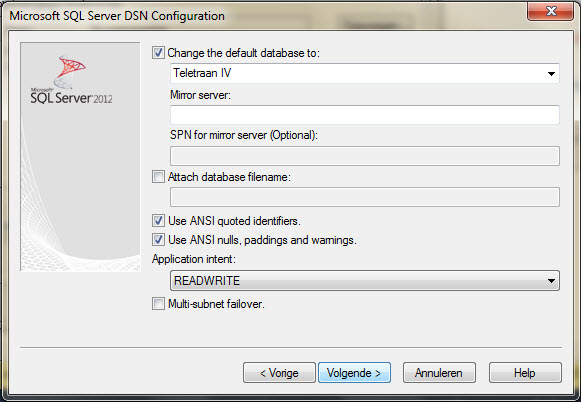

Also provide the database you want to connect to, don’t skip this one!

LS_Choosedb



Test the connection, see it succeed! if not, go through the above printscreens you probably missed a step.

LS_Testsuccesf

Now we can create the linked server on your database, by creating a query on your SSMS and can run your linked server query, it should look similar to this:

EXEC master.dbo.sp_addlinkedserver @server = N'Azure_server', @srvproduct=N'', @provider=N'sqlncli', @datasrc=N't20ko02v18.database.windows.net', @catalog=N'Teletraan IV' EXEC master.dbo.sp_addlinkedsrvlogin @rmtsrvname=N'Azure_server', @useself=N'False',@locallogin=NULL,@rmtuser=N'skyscream',@rmtpassword='password'

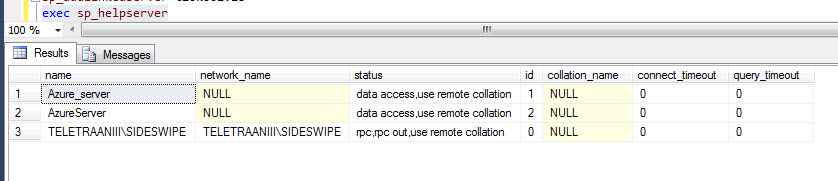

To test if the LS is added, you could run  exec sp_helpserveror just test the connection.LS_SPhelpserver

These are all the steps to a Linked Azure server. Congratulations, you are now connected to the Azure mothership of data.

Data manipulation

Next step is to insert data from the Azure linked server into our local database. Btw, this query works both ways, you could also insert data into the Azure database.

Create an INSERT statement

BEGIN TRAN INSERT INTO [Azure_demo].[dbo].[Demo] (Initials,Prefix,LastName,Gender,Street,HouseNumber ,Zipcode,City,PhoneNumber,MobileNumber,EmailAddress) SELECT Initials,Prefix,LastName,Gender,Street,HouseNumber ,Zipcode,City,PhoneNumber,MobileNumber,EmailAddress FROM [Azure_server].[Teletraan IV].[dbo].[AzureData] WHERE InsertDate BETWEEN '2008-08-22 00:00:00.000' AND '2009-02-06 00:00:00.000' ROLLBACK TRAN --COMMIT TRAN

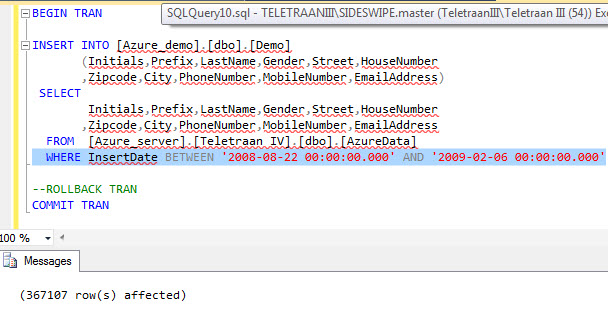

Ls_Qresult

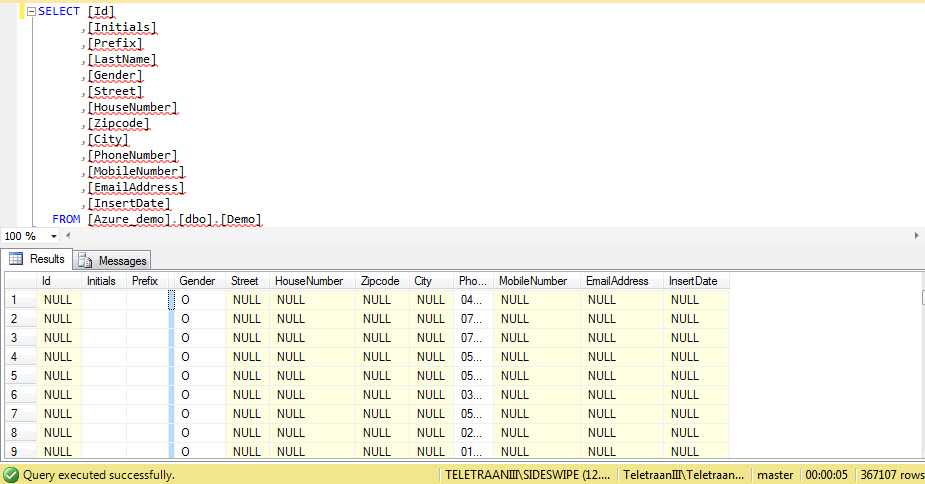

Now all rows have been added through our linked server into our local database. LS_Check
If this blog saved your ass or just made your day, please let me know 🙂
